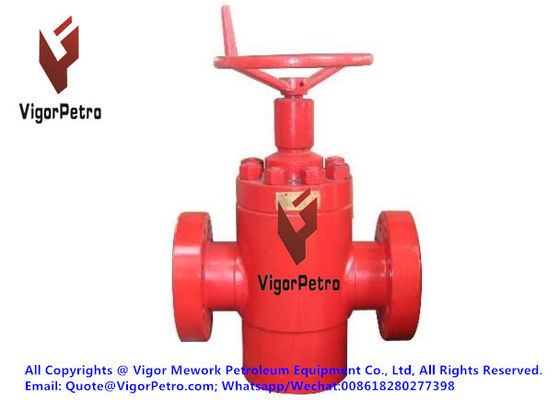

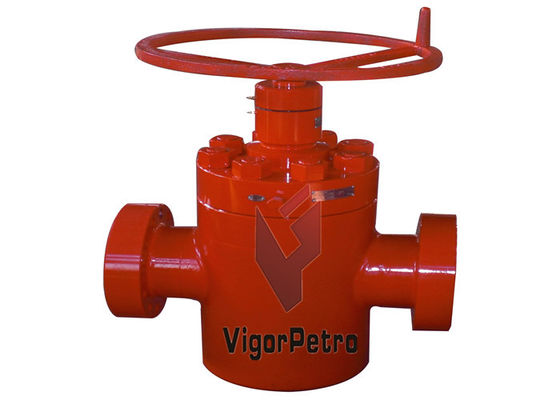

VALVE,GATE,WELL HEAD TYPE: BI-DIRECTIONAL 2.9/16 INCH 10000 PSI DD-NL PSL3 PR2 NON RISING STEM STEM

VALVE,GATE,WELL HEAD TYPE: BI-DIRECTIONAL 2.9/16 INCH 10000 PSI DD-NL PSL3 PR2 NON RISING STEM STEM

Specification:

VALVE,GATE,WELL HEAD TYPE: BI-DIRECTIONAL NOMINAL SIZE: 2.9/16 INCH PRESSURE RATING: 10000 PSI MATERIAL CLASS: DD-NL BODY MATERIAL: ALLOY STEEL BODY MATERIAL GRADE: AISI 4130 STEM TYPE: NON RISING STEM STEM MATERIAL: ALLOY STEEL TRIM MATERIAL: ALLOY STEEL SEAT MATERIAL: ALLOY STEEL TYPE OF SEAL: RING SEAL MATERIAL: METAL BONNET MATERIAL: ALLOY STEEL PERFORMANCE REQUIREMENT: PR 2 WITH API BX-153 RING GROOVES; STANDARD:ANNEX F; GATE-TO-SEAT & SEAT-TO-BODY,METAL TO METAL SEAL; BACKSEAT SEALING; WITH XYLAN COATING

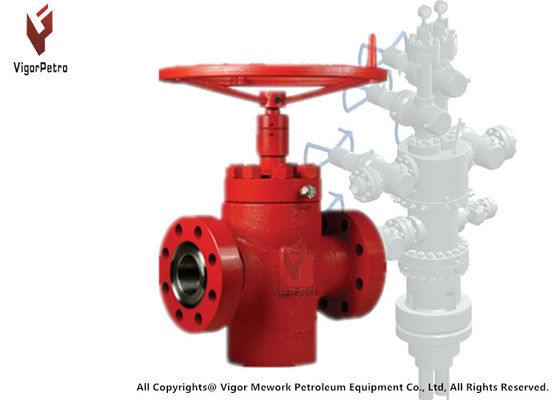

API 6A High Pressure Slab Gate Valve FL/FLS Type full bore with size range 1-13/16" to 13-5/8”

The VigorPetro FLS Type Slab Gate Valve is a full-bore, through-conduit valve available in pressure ratings from 2,000 to 20,000 psi and bore sizes from 1-13/16” to 13-5/8”. The features of bi-directional sealing and none-rising stem making ideal suited for drilling choke and kill manifolds, x-mas trees, and fracturing service. It's Easily equipped with Hydraulic Actuators for Manifold or Subsea service.

Features and Benefits:

• Metal-to-Metal Sealing (gate-to-seat, seat-to-body and Body to Bonnet)
• Two spring-loaded, pressure energized, non-elastomeric lip-seals between each seat to ensure sealing performance.
• Bi-Directional Sealing
• Stem Backseat
• Bearing cap grease fitting allows positive bearing lubrication.
• A wide range of body and trim material is available to meet various operating conditions.
• Easily equipped with Hydraulic Actuators for kill line, choke line or x-mas tree.
• Easy closing and sealing without excessive torque.
• API 6A Monogrammed.

Available Specication:
