Подробная информация о продукте:
Оплата и доставка Условия:
|
| Название продукта: | Манифольд дросселирования и глушения, манифольд для испытания скважин | Размер: | 2-1/16" - 4-1/16" |
|---|---|---|---|
| Давление: | 5000 фунтов на квадратный дюйм, 10000 фунтов на квадратный дюйм, 15000 фунтов на квадратный дюйм | Темп.Класс: | ПУ, ЛУ, ПХ |
| PSL: | PSL1, PSL2, PSL3, PSL3G, PSL4 | Премьер -министр: | PR1, PR2 |
| Класс материалов: | AA, BB, CC, DD, EE, FF, HH | Стандартный: | API Spec6A/16C, NACE |
| Приложение: | бурение скважин, испытания скважин, обратный приток/работы и т. д. |
The Choke manifold and the Kill manifold are important well control equipment to carry out close balance drilling in petroleum exploration.They can control well kick and blowout efficiently,prevent oil layer from being polluted,and raise drilling speed.
VigorPetro fabricates custom designed choke and kill manifold :
1) In oil / gas well drilling operation, drilling fluids (Muds) of designed gravity are used to overcome sub-surface pressure or the influx of formation fluid. On some occasion, kicks are experienced with change of pressure of formation while drilling. This is necessary to build up drilling fluid density to prevent influx of formation fluid. The Choke and Kill Manifold allows the driller to regulate back-pressure on the formation while gradually density of the drilling fluid is built up by circulation with closed B.O.P., till the well is stabilized and drilling is resumed.
The Choke and Kill Manifold are available up to 15,000 PSI in sizes of 2” to 4” for standard and sour services. Other type of Manifold (stand pipe, cementing etc.) can also be made available.
Choke and Kill Manifold Assy. Well Testing Manifold
2) For well Testing / Completion / Intervention, Industry uses varies configuration of Manifold, as per requirement of Service / Operating Companies, VigorPetro designs and fabricates custom made manifold in sizes of 2” to 4” up to 10,000 PSI for standard and sour services for following application.
(a) Choke Manifold For flow back/work over
(b) Production Manifold for diverting flow through test separator or vent or burner.
(c) Gas Manifold for Diverting gas through orifice meter or burner.
(d) Data Recorder for recording flowing pressure and temperature.
(e) Stimulation / Treatment for Well stimulation/treatment service.

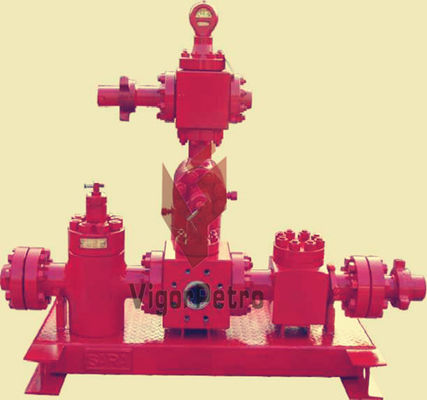

5 Valve Well Testing Manifold 8 Valve Eruption Manifold
3) VigorPetro Choke and Kill Manifold systems can incoporate a variety of field-proven components including API Gate Valves, Hydraulic Drilling Chokes, Adjustable and Positive Chokes, depending on the application.
Technical Specifications:
| Bore Size: | 2-1/16” - 4-1/16” |
| Pressure Rating: | 2,000PSI - 15,000PSI |
| Material Class: | AA, BB, DD, EE, FF, HH |
| Working Temp.: | PU, LU, KU, PX |
| Specification class: | PSL1 - PSL4 |
| Performance class: | PR1 - PR2 |
| End Connection: | Flanged End, Fig.1502 M/F, Line Pipe Thread, BW |
| Design Code: | API Spec 6A, API Spec 16C. |
| Working Medium: | Oil, Gas, Mud, Water |
| Service: | Standard Service, NACE MR-01-75 |
Vigor Mework Petroleum Equipment Co., Ltd - VigorPetro is a professional manufacturer of API 6A Wellhead & Christmas Trees, API6A Gate Valves, API 6A Flanges, API 16A Blowout Preventers, API 16C Choke & Kill Manifolds etc.
Any enquiry please contact us by email: Quote@VigorPetro.com or Kevin.Dai@VigorPetro.com.
Visit our website: www.VigorWellheadValve.com or www.VigorPetro.com for more products information.
WhatsApp/Wechat:+008618280277398
