Подробная информация о продукте:
Оплата и доставка Условия:
|
| Часть: | Фланец переходника | Размер фланца: | 7-1/16" |
|---|---|---|---|
| Рейтинг фланцев: | 3000psi | Размер резьбы: | КОРОБКА 8-5/8" 8RD |
| Материал: | AISI 4130 | Класс Temp: | U |
| СТД: | API 6a |

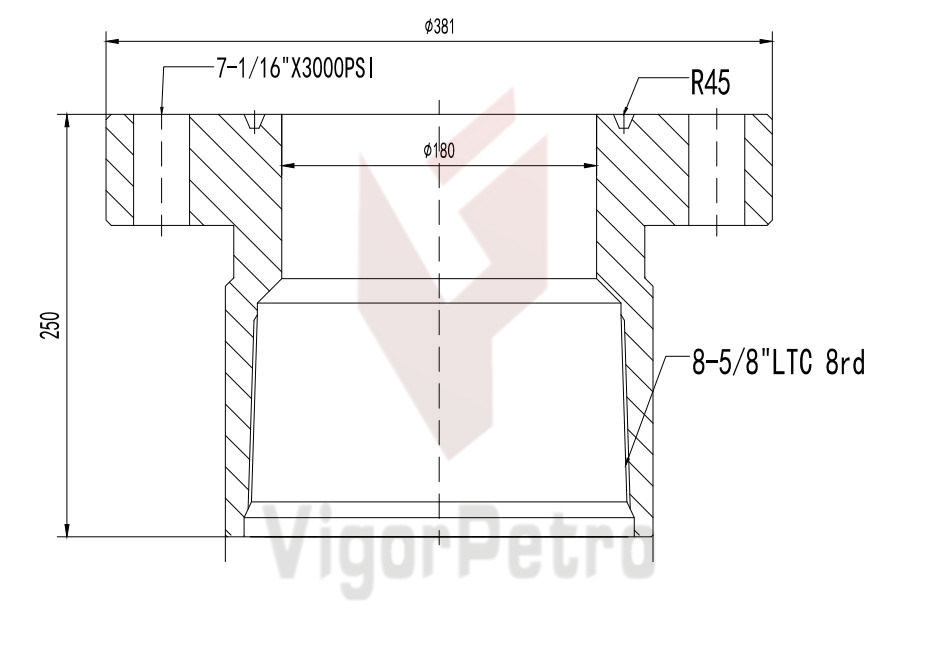

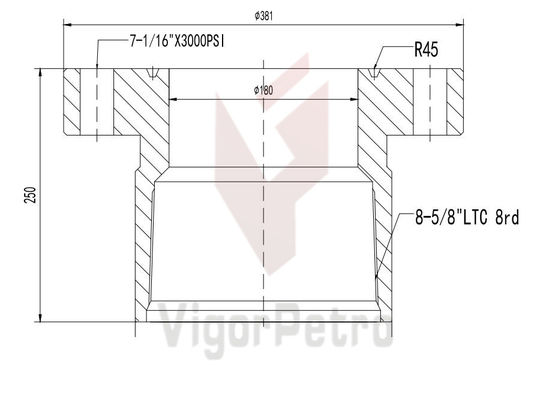

Description: ADAPTER FLANGE 7-1/16" X 3K-8-5/8" 8RD BOX, API 6A PSL3 PR1 PU DD.
VigorPetro Manufactures and provides Weco Union Adapter Flanges in both Female and Male connection types. Flange sizes range from 1-13/16" to 7-1/16", WECO size 2", 3" and 4" with Figure 206, Figure 602, Figure 1002, Figure 1502, Figure 2002 and Figure 2202 connections, the cold working pressures starting from 2000PSI to 20000PSI.
VigorPetro's WECO Union Adapter Flanges are widely used in connection of different connectors for the oilfield wellhead, manifold, frac equipment etc. Weco Flanges are fully designed, manufactured, and tested in accordance with API 6A and API Spec Q1 standards. The standard material is high quality integral forged AISI 4130 alloy steel, AISI 410 Stainless Steel and other material are available upon customer's request.
We can also supply the Weco Adapter Flange with a Blacking Plug (Blind Male or Blind Female Plug) c/w 1/2” NPT Port.
Specifications:
| Product Name | Weco Flange, Adpter Flange, Union Falnge |
| Flange Size | 1-13/16", 2-1/16", 2-9/16", 3-1/16", 3-1/8", 4-1/16", 5-1/8", 7-1/16“ or Customized |
| Weco Size | 1", 2", 3", 4" |
| Weco Conection | Fig 206, Fig 602, Fig1002, Fig1502, Fig 2002, Fig 2202 |
| WorkingPressure | 2000PSI, 3000PSI, 5000PSI, 10000PSI, 15000PSI, 20000PSI |
| Material | AISI 4130, AISI 410SS, INCONEL 625, or as per customers' requirements |
| Temp. Class | PU, LU, KU, PX |
| Material Class | AA, BB, CC, DD, EE, FF, HH |
| PSL | PSL1, PSL2, PSL3, PSL3G, PSL4 |
| PR | PR1, PR2 |
| Standard | API 6A 21TH, NACE MR0175 |
| Application | Wellhead, Manifolds, Frac, Pipe Connection |
We are a professional manufacturer of Wellhead Assemblies, Christmas Trees, API6A Gate Valves, Blowout Preventers, Choke Manifolds, Kill Manifolds etc. Aside from API6A Weco Union Adapter Flange, we also produce and sell Welding Neck Flange, Threaded Flanges, Spacer Spool Flanges, Blind Flanges, Companion Flanges, Target Flanges, Test Flanges, Double Studded Adapter Flanges(DSAF), and Adapter Spools for all client needs.
Any enquiry please contact us by email: Quote@VigorPetro.com or Kevin.Dai@VigorPetro.com.
Visit our website: www.vigorwellheadvalve.com or www.VigorPetro.com for more products information.
WhatsApp:+86 18280277398
