Подробная информация о продукте:
Оплата и доставка Условия:
|
| Размер: | 1-1/4", 1-1/2", 2-7/8" НД | Материал: | АИСИ 4130, 410СС |
|---|---|---|---|
| Рейтинг давления: | 2000 фунтов на квадратный дюйм - 20000 фунтов на квадратный дюйм | Класс материалов: | ДД, ЭЭ, ФФ, ДЧ |
| Темп. Сорт: | ПУ, ЛУ, КУ, ПХ | PSL: | ПЛС1-ПСЛ4 |
| Премьер -министр: | PR1 PR2 | Услуга: | API 6A NACE MR-0175 |

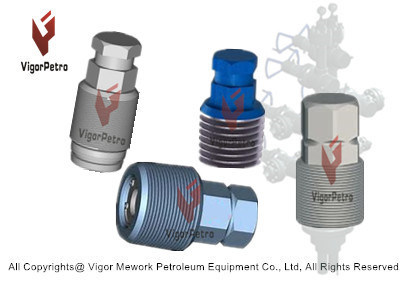

Valve Removal (VR) Plugs are threaded plugs that used to be installed in the wellhead to enable gate-valve removal under pressure. The VR Valve is a usefull and necessary tool to do the pressure maintenance job on the wellhead without leaking.
Valve Removal Plug material as a minimum meets the requirement of PSL3. The material should be 60K (13.8 MPa (2 000 psi) through 69.0 MPa (10 000 psi) rated working pressure), and 75K (103.5 MPa (15 000 psi) through 138.0 MPa (20 000 psi) rated working pressure). The material requirement of Valve Removal Plugs shall be for sour services (DD, EE, FF or HH).
The nominal size of a VR Plug is its outer thread diameter. Valve Removal Plugs threads are coated to minimize galling and to develop maximum leak resistance. The threads shall be gauged after coating. Valve Removal Plugs are not designed for use with test and blind flanges. There are 4 sizes and 2 pressure ratings available.
All plugs have standard API Line Pipe Threads and are small enough to pass through the valve to be removed. The plug is installed when the valve is to be removed and removed when the valve is to be installed. VR Plug Tool is also available.
Technical Specifications:
| Size | 1-1/4", 1-1/2", 2-7/8" LP, Sharp Vee |
| Pressure Raiting | 2000psi - 20000psi |
| Material Class | DD, EE, FF, HH |
| Temp. Class | PU, LU, KU, PX |
| Product Specification Level | PSL3, PSL3G, PSL4 |
| Performance Requirement | PR1, PR2 |
| Standard | API Spec 6A |
| Service | Standard, Nace Mr-0175 |
